Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: NJW
  • Model Number: NJW-XP6.25
  • Usage: Indoor
  • Tube Chip Color: Full Color
  • Display Function: Animation
  • Pixels: 6.25
  • Screen Dimension: Customized Size
  • pixel ptch: 6.25mm
  • moudule size: 250*250mm
  • color configuration: 1R1G1B
  • module resolution: 38*38dots
  • best viewing distance: 6-110m
  • storage temperature: -20degree~+60degree
  • Certification: CE,FCC,RoHS,ISO9001,CCC
  • frame rate: more than 60HZ
  • LED chip: Epistar
  • Warranty: 2 Years

Packaging & Delivery

Packaging Details wooden case /flight case
Delivery Time 5da2ys

 Our service

1) Service principles

Response in time, solve problems as soon as possible and ensure the use.

2) Service period

In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.

3) Service scope

If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare parts such as power and chips etc..

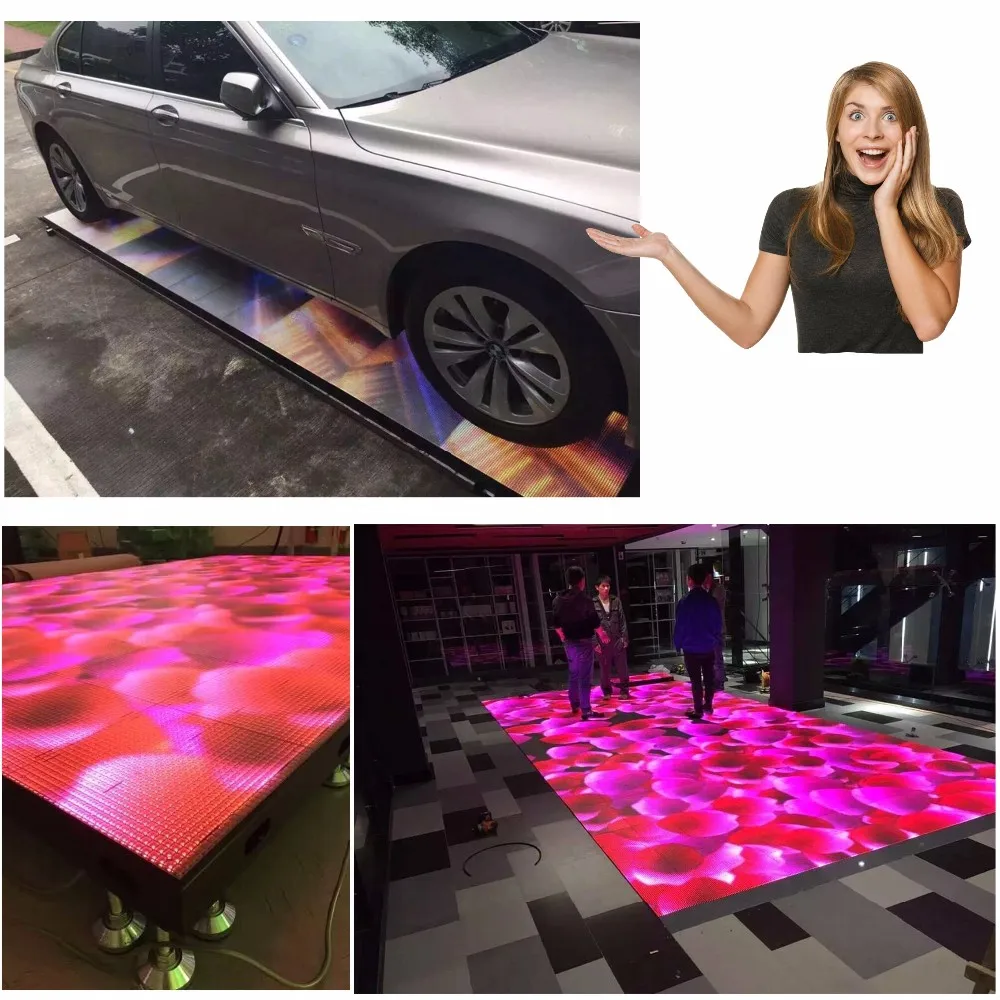

           P6.25 INDOOR LED DANCE FLOOR



1.PRODUCT USAGE:

  •   Use for indoor dance floor



2. PRODUCT DETAILS:

 Tile screen in the stage performance of the special effects have been used to create the most incisive, magnificent, very modern scene to personally on the scene visual feast.

  •   P6.25LED Tile screen adopt SMD3528/SMD3535 Three in on  .

   LED floor tiles in both indoor and outdoor use has a very good light effect.

  •  P6.25LED floor tiles use super PC hood bearing design, bearing up to 2 tons.



  •   LED floor tile screen using constant current driver chip and input buffer chip, The LED control system can display video animation, image text information, etc..
Important note: can be customized according to customer requirements interactive LED floor tiles.
p6.25 outdoor full color waterproof led dance floor



Parameters



 Item

Value

Item

 Value

Pixel pitch

6.25mm

Best view distance

6m~48m

Pixel configuration

1R1G1B

Power(Max/Ave.)

290W/120W

LED type

SMD3528

Scanning method

1/5scanning

Module resolution

38dots*38dots

Driving method

Constant current

Module size

250mm*250mm

View angle(H/V)

120°/120°

Cabinet resolution

160dots*160dots

Lifetime

100000hours

Cabinet size

500mm*1000mm

Frame frequency

60Hz/50Hz

Module quantity

2*4pcs

Refresh frequency

600Hz~2000Hz

Cabinet weight

9.5kg

Gray grade

12bits~16bits

Cabinet material

iron

Colors

36bits~48bits

Pixel density

25600dots/m2

Work temperature

-20~+40°C

Brightness

3500cd/m2

Input voltage

AC 110~220V

  Brightness adjustment

      Automatic 256 levels

IP grade (F/B)

IP54/IP43

Control distance

CAT cable: 100m;   Muti-mode fiber:500m;  Single-mode fiber: 15km



MODULE DETAILS

CABINET DETAILS

HOW TO INSTALL AND DISMOUNT?





Factory:







certificates:





led screen packaging:





Delivery way

Ship/air/express







APPLICATION PROJECT SERVICE

We would like to offer you fast suggestion on the project if you can give us the information according to the questions

1. The screen type : outdoor wall or on the ground by the column?

2.what will be appear on the screen? Text or video or any special requirement ?

3.The location of the screen photos

4 The best proportion of the screen is 4:3 or 16:9. We would like to help you account the exactly size according to the location size .

OUTDOOR USAGE LED DISPLAY APPLICATION

Wall surface fixed by steel frame

Column support frame

Ads player

Stage rental

taxi or bus

INDOOR USAGE LED DISPLAY APPLICATION

Wall

Rental

Magnet

Dance floor



...

IF YOU NEED THE FULL DISPLAY APPLICATION, WELCOME TO  CONTACT WITH OUR SERVICE PERSON !
